Product Details
Place of Origin: Guangdong, China
Brand Name: splendid
Certification: NSF61, KTW, WRAS, IATF16949
Model Number: Rubber O Ring
Payment & Shipping Terms
Minimum Order Quantity: 100 pieces
Price: $0.005 - $0.12/pieces
Packaging Details: Standard pack: bulk pack in a plastic bag and carton box
Special pack: Paper tube, pallet etc
Delivery Time: 4-8weeks
Payment Terms: L/C, T/T
Supply Ability: 250000 Piece/Pieces per Year
Document: |
ISIR, PPAP, Control Plan... |
Hardness: |
20-90 Shore-A Or IRHD |
Performance: |
Excellent Chemical And Physical Property |
Temperature: |
-60C - 450C |
Name: |
Manufacturer Supplied Custom Molded Silicon Medical Grade Rubber O Ring Seal |
Color: |
Customization |
Material: |
Silicone EPDM NBR NR FKM Etc. |
Document: |
ISIR, PPAP, Control Plan... |
Hardness: |
20-90 Shore-A Or IRHD |
Performance: |
Excellent Chemical And Physical Property |
Temperature: |
-60C - 450C |
Name: |
Manufacturer Supplied Custom Molded Silicon Medical Grade Rubber O Ring Seal |
Color: |
Customization |
Material: |
Silicone EPDM NBR NR FKM Etc. |

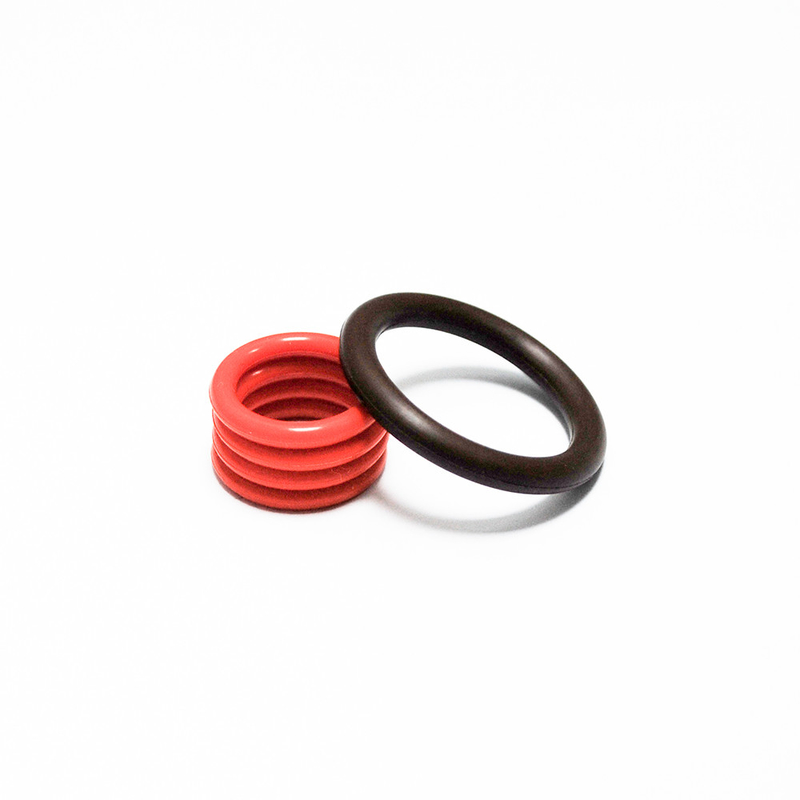

Rubber O Ring Description
O Ring is a round, mechanical gasket designed to be seated in a groove and compressed during assembly between two or more parts, creating a seal at the interface. O-Rings are one of the most common types of seals because they’re inexpensive, reliable and have simple mounting requirements. Since they are known as one of the most important elements of machine design, o-rings may be used in static applications, where little range of motion is required. O-Rings may be used in dynamic applications, like rotating pump shafts and hydraulic cylinder positions.
Specification of Rubber O Ring
| Name | Rubber O Ring |
| Material | FKM, Silicone, FPM, VITON, NBR, EPDM, CR |
| Color | clear, transparent, white, colorful, green, red, blue, pink, black, etc |
| Temperature | -60~+230C |
| other Material | we also can produce NBR, FKM, FPM, EPDM, CR material for you. |
| OEM | available |
Rubber O Ring Application
Rubber washers are flat rubber rings with center holes to accommodate fasteners or allow fluids to pass through. Rubber washers prevent leaks, protect surfaces, and dampen vibration in a variety of applications. Because of their durability and flexibility, these rubber spacers provide a tighter seal than metal washers in many applications.
Company Impression
O Ring Seal Material
Full range of material available: NBR , EPDM , SIL , FKM ( ETP, GF, GFLT, GLT ) , HNBR , FFKM , PU , PA , CR , NR , SBR , AFLAS , F . Silicone , Vamac , Butyl etc
| Materials | ||
| NR | Natural Rubber | High tensile strength, good ductility |
| SBR | Styrene Butadiene Rubber | Uniform quality , less foreign matter but weak mechanical strength , can be mixed with NR , widely used in tire industry , shoe soles , tape , conveyor belt , etc |
| BR | Polybutadiene | |
| IIR | Butyl Rubber | Gas is less permeable and resistant to heat, sunlight and ozone |
| EPDM | Ethylene propylene Rubber | |
| CR | Polychloroprene Neoprene | Excellent heat aging, weather resistance, ozone resistance |
| XNBR | Carboxylated NBR / Carboxyl Butadience Acylonitrile | This gelatinization is rapid sulfur addition, short scorching time, short safe storage period, compared with the general NBR, excellent wear resistance, other characteristics are similar. |
| NBR | Nitrile Rubber ( Buna ) | Resistant to alcohol, it is the most common rubber raw material for oil seal and O-ring at present |
| HNBR | Hydrogenated Nitrile / Highly Saturated Nitrile ( HSN ) | Better temperature and weather resistance than NBR, similar oil resistance to NBR, used as seals for new R-134A refrigerant system. |
| PU | Polyurethane Rubber | High hardness, high elasticity, abrasion resistance are difficult compared to other rubbers, aging resistance, ozone resistance, oil resistance is also quite good, the general PU air tightness is good |
| CSM | Hypalon , Polyethylene | Good heat resistance, weather resistance, ozone resistance, acid resistance, often used for oxidation resistant drugs (except nitric acid, sulfuric acid) |
| ACM ( PA ) | Polyacrylate Rubber | It has good resistance to petrochemical oil, high temperature and weather. It is worse than general oil adhesive. It is widely used in automotive transmission system and power system seals. |
| ECO | Epichlorohydrin / Hydrin | Good oil resistance, heat resistance and ozone resistance |
| VAMAC | Vamac ( Ethylene / Acryllic ) AEM | Petrochemical oil resistance, heat resistance, weather resistance, ozone resistance are good, compared with PA has better temperature, widely used in automotive transmission system and power system seals. |
| SIL | Silicone Rubber | Tensile strength is worse than general rubber and does not have oil resistance, heat resistance, weather resistance, ozone resistance, low temperature are excellent, suitable for high and low temperature environment, and alcohol resistance. |
| FSIL | Fluorinated Silicone Rubber | Good resistance to oil, solvent and fuel oil, good resistance to high and low temperature, used in space parts, but mostly limited to static seals, its strength and wear resistance are not good. |
| FPM / FKM | Fluoro Carbon Rubber | High TEMPERATURE RESISTANCE IS BETTER THAN SIL, CHEMICAL resistance, MOST oil AND several solvents (EXCEPT KETones, LIPids), weather resistance, ozone resistance are good, cold resistance is poor, widely used in automobile, chemical plant parts |
| Please contact us for professional material selection | ||
FAQ
Q: Are you a manufacturer or a trading company ?
A: We're professional manufacturer of High Temp O Rings , providing one-stop OEM & ODM service to all partners all over the world.
Q: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the freight cost.
Q: What is your terms of payment?
A: T/T 50% as deposit, and bal.50% before delivery.
Q: What is your standard packing?
A: All the goods will be packed by carton box and loaded with pallets. Special packing method can be accepted when needed.
