Product Details
Place of Origin: Guangdong, China
Brand Name: Splendid
Certification: UL, NSF, WRAS, IATF16949, REACH, ROHS
Model Number: O-ring
Payment & Shipping Terms
Minimum Order Quantity: 100 pieces
Price: $0.099 - $2.19/pieces
Packaging Details: Standard pack: bulk pack in a plastic bag and carton box
Special pack: Paper tube, pallet etc
Delivery Time: 4-8weeks
Payment Terms: L/C, T/T
Supply Ability: 250000 Piece/Pieces per Month
Name: |
Rubber O Rings |
Hardness: |
20-90 Shore-A Or IRHD |
Material Type: |
EPDM, F.VMQ, FKM, FFKM, HNBR, NEOPRENE, NBR, SILICONE, VAMAC... |
Curing System: |
Sulfur Cured And Peroxide Cured |
Document: |
ISIR, PPAP, Control Plan... |
Color: |
Customer's Request |
Temperature: |
-60C - 450C |
Performance: |
Excellent Chemical And Physical Property |
MOQ: |
100pcs |
Delivery Time: |
4-8 Weeks |
Name: |
Rubber O Rings |
Hardness: |
20-90 Shore-A Or IRHD |
Material Type: |
EPDM, F.VMQ, FKM, FFKM, HNBR, NEOPRENE, NBR, SILICONE, VAMAC... |
Curing System: |
Sulfur Cured And Peroxide Cured |
Document: |
ISIR, PPAP, Control Plan... |
Color: |
Customer's Request |
Temperature: |
-60C - 450C |
Performance: |
Excellent Chemical And Physical Property |
MOQ: |
100pcs |
Delivery Time: |
4-8 Weeks |

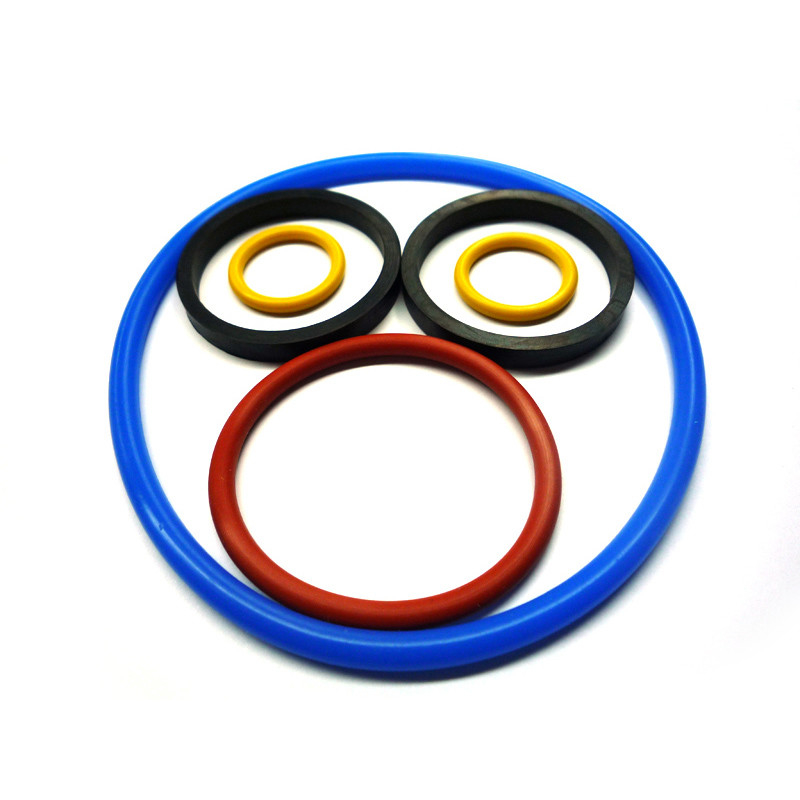

Customized Rubber UL Listed NBR Rubber O-rings FKM GFLT Grade Rubber O Rings
O-ring is suitable for installation on all kinds of mechanical equipment, in the specified temperature, pressure, and different liquid and gas media, in the state of static or moving sealing.
In machine tools, ships, automobiles, aerospace equipment, metallurgical machinery, chemical machinery, engineering machinery, construction machinery, mining machinery, petroleum machinery, plastic machinery, agricultural machinery, and all kinds of instruments and meters, a large number of applications of various types of sealing components.
Product Materials
HNBR:Hydrogenated Nitrile Butadiene Rubber, also known as Highly Saturated Nitrile (HSN), is produced by hydrogenating acrylonitrile butadiene rubber (NBR).This process improves the heat and ozone resistance, increases tensile strength, and provides superior abrasion resistance. The result is a rubber polymer that performs superior to standard NBR in most sealing applications. Taking advantage of its inherent properties, HNBR can be compounded to provide excellent service life in applications such as oilfield, automotive, and refrigerants. Dynamic applications requiring long service life or in abrasive environments are especially well suited to HNBR. FDA grades are available. Internally lubricated compounds are superior for extended wear dry air applications.
HNBR O-Rings are most commonly in Green or Black, are also avaialable in Yellow and red special compounds.
Certificate
We have been certified by 2002-edition ISO/TS16949 from October 2003, we also got KTW, DVGW, WRAS, and NSF certifications for compound E7001Z59 in 2008. We have an extensive selection of materials available to meet ASTM, JIS, DIN, NSF, and other specifications. All of our products are backed by our ISO/TS16949 registered systems. Splendid meets TS16949 standards. Supporting documentation, PPAP control plans and FMEA are available upon request
| Name | Photo | Authority |
| NSF | |
NSF is specialized in standard setting, product testing and certification services in the fields of public health, safety and environmental protection, and is an authoritative body in the field of public health and safety |
| KTW | |
The supplier is required to comply with DVGW (German Gas and Water Association) Regulation W 270 "Propagation of microorganisms on Non-metallic materials". This standard mainly protects drinking water from contamination with biological impurities. All drinking water systems and excipients exported to Europe must be KTW certified. Therefore, if Chinese drinking water systems and excipients are to be exported to European countries, they must pass KTW certification. KTW has been authorized by the World Health Organization (WHO) for the certification of safe drinking water. |
| WRAS | |
WRAS(Water Regulations Advisory Scheme) certification refers to the Water Regulation Advisory Scheme. WRAS is the certification of the safety of drinking Water in the UK. |
| UL | |
Founded in 1894, UL has become one of the world's leading testing and certification organizations with a complete set of management systems, standard development and product certification procedures. |
| SGS | |
SGS certification refers to the service that SGS performs compliance certification on targets according to standards, regulations, customer requirements and other conditions. To carry out relevant certification, we must pass inspection, testing, authentication, certification and other means (SGS certification itself is not a certification, but refers to the certification service of SGS). |
