Product Details
Place of Origin: Guangdong, China
Brand Name: SP
Certification: IATF16949; UL; NSF; WRAS; KTW
Model Number: Bellow
Payment & Shipping Terms
Minimum Order Quantity: 100 pieces
Price: $0.005 - $0.12/pieces
Packaging Details: Standard pack: bulk pack in a plastic bag and carton box
Special pack: Paper tube, pallet etc
Delivery Time: 4-8weeks
Payment Terms: L/C, T/T
Supply Ability: 500000 Piece/Pieces per Month
Material: |
NBR, EPDM , Silicone , FKM, HNBR, FVMQ, CR, VAMAC, FFKMK Etc |
Color: |
Black (any Customized Color Available ) |
Hardness: |
20~90 Shore |
Name: |

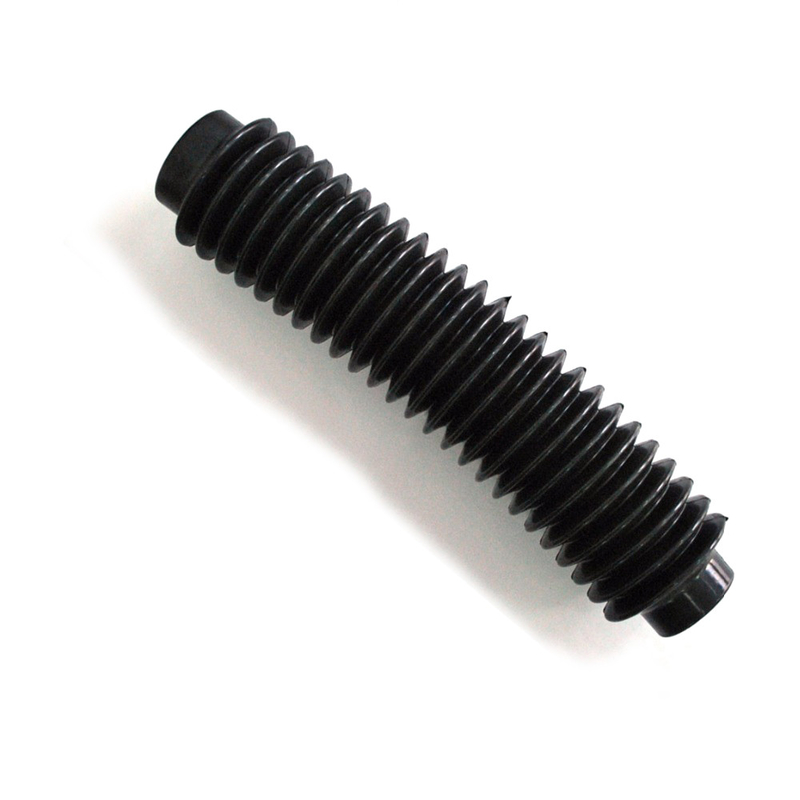

Rubber Bellow |
Surface Treatment: |
Matte, Polished, Mirror Polished, Texture, Laser Engraving, Plating |
Certificate: |
SGS , NSF , KTW , WRAS , UL |
Material: |
NBR, EPDM , Silicone , FKM, HNBR, FVMQ, CR, VAMAC, FFKMK Etc |
Color: |
Black (any Customized Color Available ) |
Hardness: |
20~90 Shore |
Name: |
Rubber Bellow |
Surface Treatment: |
Matte, Polished, Mirror Polished, Texture, Laser Engraving, Plating |
Certificate: |
SGS , NSF , KTW , WRAS , UL |
To suit specific industrial application, different types of rubber bellows are available in the market including single ended rubber bellows, double ended rubber bellows, rubber bellows with ribs and rubber bellows without ribs.
Materials Used in Rubber Bellows:
Depending upon the end use requirements, rubber bellows are manufactured using various synthetic polymers like:
• SBR
• Neoprene
• HNBR
• Ethylene Propylene Diene Monomer (EPM, EPDM), etc .
| Material | EPDM(Ethylene propylene Rubber) |
| Advantage | 1.Excellent heat resistance 2.Excellent ozone properties 3.Excellent aging property 4.Excellent stability 5.Excellent resistance to polar solvents, such as alcohol, ketone, ester and other phosphate ester hydraulic oil |
| Disadvantage | |
| Temperature | -54℃~150℃ |
| Application | Mainly used in automobile, aviation, printing, textile and machinery manufacturing industry, due to the development of NBR modified varieties, expanded the application prospect of nitrile rubber, summed up the main play: manufacturing of spare Shanshan box, fuel tubing, oil cloth, oil seal, oil pipe, oil resistant rubber parts with contact with Shanshan products, etc.. |
| Material | NBR(Nitrile Rubber ( Buna )) |
| Advantage | 1.Excellent oil resistance 2.Hydrolytic resistance 3.Excellent wear resistance 4.Good air tightness 5.Excellent antistatic properties 6.Resistant to alcohol |
| Disadvantage | 1.Poor cold resistance 2.Not resistant to ozone |
| Temperature | 54℃~135℃ |
| Application | NBR is mainly used to manufacture oil resistant rubber products |
| Material | FPM / FKM(Fluoro Carbon Rubber) |
| Advantage | 1.Excellent High Temperature Resistance 2.Excellent Abrasion-Resistance 3.Excellent Oil Resistance 4.Excellent Weathering Resistance 5.Excellent Ozone Resistance 6.Good Water Resistance |
| Disadvantage | 1.Poor Low Temperature Resistance |
| Temperature | -20℃~260℃ |
| Application | Widely used in automotive, aerospace, chemical plant sealing parts |
Rubber bellows are can be used to fix alignment. They also absorb sound and vibration. They are also called as shock absorbers. They help in absorbing movement of engines, tanks, pipelines, turbines, machines equipment etc.
Application :
